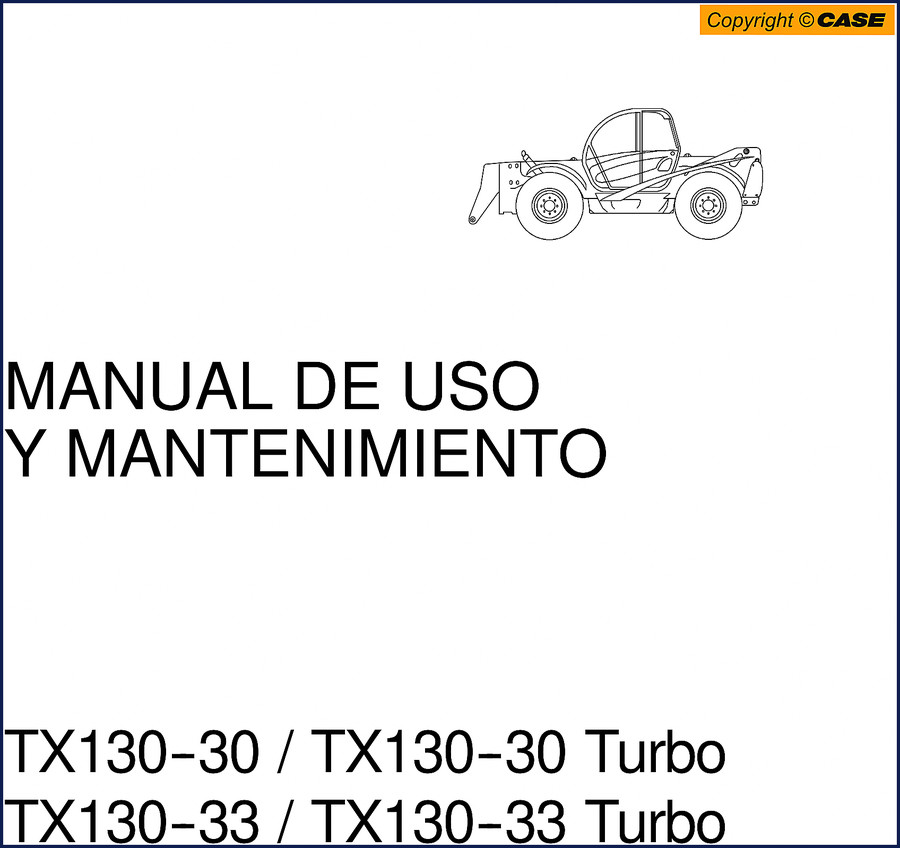

Case TX130-30, TX130-30 Turbo, TX130-33, TX130-33 Turbo User Manual

If you’re running a TX130-30 or TX130-33 telehandler on a job site, you need the factory procedures for safe operation and routine maintenance. I’ve seen operators skip the load chart check and roll a machine. This Case TX130-30, TX130-30 Turbo, TX130-33, TX130-33 Turbo User Manual – 158 pages of Spanish-language OEM documentation – gives you the exact information Case expects you to follow. It covers all four models: the base TX130-30, the TX130-30 Turbo, the TX130-33, and the TX130-33 Turbo. The manual came from the factory, not from a third-party reprint house. That matters when you’re trusting the load limits and safety decal locations.

What the Case TX130-30 User Manual Contains

Nine sections total. Section 1 starts with general safety and an introduction to the machine – page 1-2 covers the general description. Page 1-15 gives you the summary of safety norms. You’ll find the location of every safety decal on page 1-16. If you’re using this machine on a public road, Section 1 also lists the required interior and exterior equipment (pages 1-30 and 1-31). The CE compliance information is on page 1-32, and the universal symbols on page 1-34. Every operator should read Section 1 before moving the machine. I cannot stress that enough. The load indicator panel is described on page 1-25 – understand that before picking up any load.

Controls, Instruments, and Machine Operation

Section 2 – Controls, instruments, and operation – covers the cab layout, instrument panel, and how to start and shut down the telehandler. Section 3 is machine handling: driving on slopes, steering, using the boom controls, and the correct way to pick, carry, and place loads. The manual includes a load chart for each configuration. Do not guess the lifting capacity. The manual includes a load chart for each configuration – use the one that matches your model and attachment. Section 7 covers accessories: forks, buckets, work platforms. Each attachment has its own operating limits.

Lubrication and Maintenance Schedule

Section 4 – Engrase y mantenimiento – is the grease and maintenance bible. It lists greasing points, oil change intervals, filter replacements, and fluid checks. The schedule is broken into daily, 50-hour, 250-hour, 500-hour, and 1000-hour services. If you ignore the daily grease points, the boom pin bushings wear out fast. The manual specifies the correct hydraulic oil and engine oil viscosity for your climate. Section 8 (Especificaciones) gives you the exact fluid capacities and tire pressures. For the turbo models, the maintenance section includes special notes on the turbocharger oil supply and cool-down procedures. See Turbocharger Tech for background on turbo failure causes.

Troubleshooting and Storage – Don’t Skip These Sections

Section 5 is troubleshooting – it covers common problems like engine won’t start, hydraulic functions slow, boom drift, and electrical warning lights. The manual gives you a diagnosis flowchart for each symptom. This is not a repair manual, so you won’t get detailed component overhaul steps, but you will get the operator-level fixes and when to call a dealer. Section 6 covers machine storage – long-term parking, battery disconnect, anti-corrosion steps, and re-commissioning after storage. Section 9 is an alphabetical index so you can find any topic fast.

Source Authenticity – Why OEM Matters

This is a genuine Case factory user manual, not a reprint or a scanned copy from a third-party aggregator. The content matches what Case provides to dealers. The page numbers, section references, and safety warnings are unaltered. I’ve seen aftermarket manuals that skip pages or mislabel controls. That’s dangerous. When you need to know the exact location of a safety decal or the correct procedure for a stability test, you want the original. For other Case operator manuals, AutoRepairManuals carries the CASE 580 Super R Series 2 User Manual, the CASE 21E/121E/221E/321E Series 3 Operator’s Manual, and the CASE 580SR/590SR Series 3 Operator’s Manual. Each one is an OEM document, guaranteed.

Specifications and Accessories – Your Quick Reference

Section 8 – Especificaciones – has the full machine specs: dimensions, weights, travel speeds, hydraulic system pressure (if listed), and fuel tank capacity. Section 7 lists approved attachments and their part numbers. If you’re adding a hydraulic circuit for a grapple or a winch, Section 2’s controls section explains the Manual Transmission shuttle and directional controls that apply to all models. Having the factory spec sheet on your phone or tablet saves you from crawling under the machine to check the serial plate.

That load chart alone is worth the price.

Frequently Asked Questions

Is this the service/repair manual?

No. This is the user/operator manual. It does not cover engine or transmission overhaul.

What specific maintenance intervals are included?

Section 4 (Engrase y mantenimiento) lists daily, 50-hour, 250-hour, 500-hour, and 1000-hour service items. It covers greasing points, hydraulic oil checks, engine oil change intervals, air filter cleaning, and fuel system water drain procedures. The manual specifies the correct lubricants and capacities – see Section 8 (Especificaciones) for fluid volumes. If you ignore these schedules, you’ll see premature wear on the boom pins and hydraulic pumps.

If you operate a TX130-30, TX130-30 Turbo, TX130-33, or TX130-33 Turbo and want the factory operator’s documentation on your workbench or tablet, Access the Factory Manual from AutoRepairManuals. It’s the same 158-page PDF Case ships with the machine, ready for your reference.
