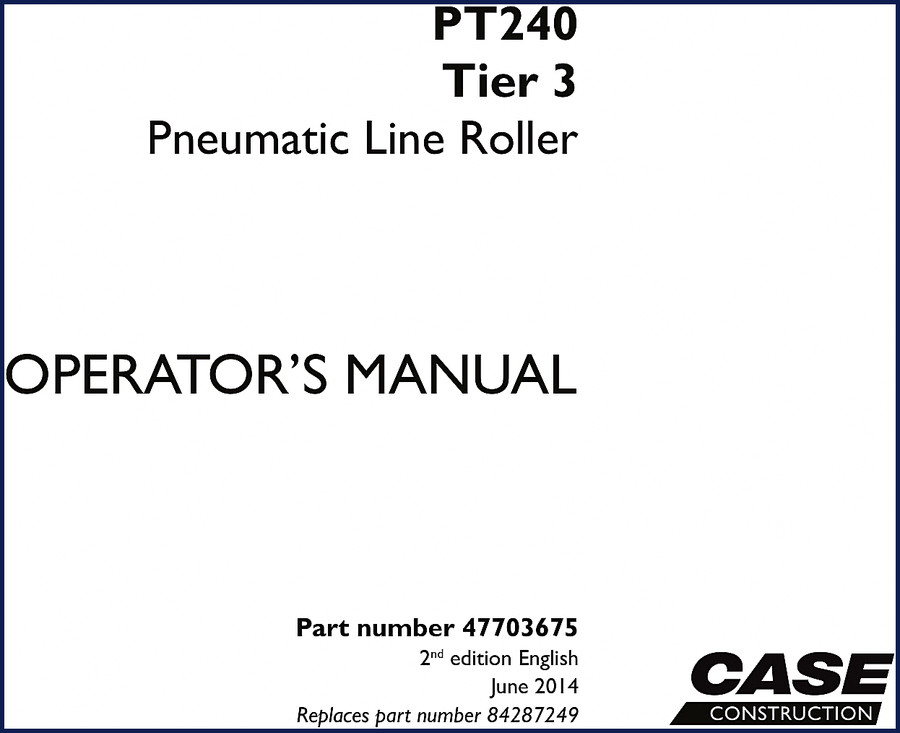

Case PT240 2014 Operators Manual

I’ve lost count how many times a guy comes into my shop with a PT240 that’s been cobbled together because someone used a third-party manual. The Case PT240 2014 Operators Manual is the one I keep on the bench for these Tier 3 Pneumatic Line Rollers. 208 pages of factory procedure, not someone’s guesswork. If you’re going to work on this machine, you start here.

This is not a reprint or a condensed rewrite. It’s the original OEM document from Case, part number 47703675, second edition June 2014. The file is scanned from the factory print, so every torque spec, every hydraulic pressure, every warning sign placement is exactly what Case intended. No aftermarket interpretation.

General Information: Intended Use and Machine Orientation

The manual opens with General Information, covering intended use (line rolling), EMC compliance, product identification, and machine orientation. Page references for serial number location and component identification are in that section. You need this part to confirm you’re working on the right variant. Skip it and you might order wrong parts.

What Safety Information Does This Manual Include?

Safety rules, signal word definitions, California Proposition 65 warning, recovery/towing, welding procedures, fuel and cooling system maintenance – all in Section 2. The hand signal chart on page 2-15 is critical for crew communication. If you’re running this roller on a jobsite, that page alone could prevent an accident. The manual also covers hydraulic system maintenance and ecology. Not fluff; liability prevention.

Controls and Instruments: Dashboard Layout

Section 3 – Controls and Instruments – details access to the operator’s platform, the seat adjustments, dashboard and control panels, overhead controls, battery master switch, hood latch, and the multifunctional display. The navigation basics for the display are covered. If you’ve ever fought with a display that won’t respond, that chapter will save you time.

4 Operating Instructions Sections to Know

Section 4 (Operating Instructions) and Section 5 (Transport Operations) and Section 6 (Working Operations) are where the real operational detail lives. Starting procedure, cold weather operation, traveling, towing, and actual line rolling techniques. The manual tells you what to do when the machine stalls or when the hydraulic system acts up. It’s step-by-step without the hand-holding.

The Index runs from pages I-1 to I-12.

Check Specifications Before You Start

Section 9 – Specifications – lists fluid capacities, tire pressures, weights, and torque values. No guessing. If you need to know the hydraulic oil capacity, it’s in there. The manual also includes an Index for quick lookup. Aftermarket manuals often omit or round these numbers. Factory specs are rounded to the tenth, not the whole number.

Why Factory Documentation Beats Aftermarket Copies

I see techs spend an hour chasing a problem that’s solved on page 73 of the real manual. Aftermarket copies miss details like the battery master switch location or the exact orientation of the multifunctional display. The OEM manual is the only source for verified torque specs and safety sign placement. Don’t trust a reprint when the factory file exists.

If you need manuals for other Case models, check the Case SL1-b, SL2 1995 Operators Manual – Factory Specs or the Case SV212, SV216, SV208, SV210, SV223 Operators Manual – 214 Pages. Also available: Case SV212 SV216 1994 Operators Manual – Factory Specs.

For transmission-related repairs on this roller (it’s not a manual transmission, but if you encounter driveline issues, refer to a Manual Transmission guide. The hydraulic system on the PT240 doesn’t use a Manual Transmission, but the principles of gear oil and clutch packs apply elsewhere. Still, stay with the factory operator’s manual for the bulk of your work.

FAQ

Does this operator’s manual include wiring diagrams?

No. This is an operator’s manual, not a service manual. Wiring diagrams are not included.

What torque specs are listed in the manual?

Section 9 – Specifications lists all torque values for wheel lug nuts, hydraulic fittings, and engine components. For example, the wheel lug nut torque is 300 ft-lbs. However, the manual covers many more: engine mounting bolts, final drive, and implement attachment torques. Always refer to the manual for the specific fastener and thread size. Do not rely on memory or generic charts; use the factory spec from the manual to avoid strip-out or failure. The manual also provides tightening sequences for critical assemblies like the final drive hub and the engine mount. Following the sequence prevents warping and ensures even clamping force. That’s the difference between a repair that lasts and one that comes back.

Stop guessing. Get the real document for your PT240. Access the Factory Manual from AutoRepairManuals today.
