CASE Poclain 75 P, 90 P 1984 Technical Manual – Factory Specs for Hydraulic Excavators

I’ve been turning wrenches since before most of you were born, and nothing gets my blood pressure up faster than some third-party reprint that lists a torque spec from a different engine. That’s why when a CASE Poclain 75 P or 90 P rolls into my six-bay shop here in San Antonio, I pull the original factory documentation. This 1984 CASE Poclain 75 P, 90 P 1984 Technical Manual is the real deal – 189 pages of what the engineers wrote, not what a copy shop guessed. If you’re going to rebuild the hydraulic pump or reseal the swing gearbox, you want the OEM data, not a photocopy of a translation.

Engine Specs: Deutz F6L 912

Page 4 of the manual lays out the Deutz F6L 912 air-cooled diesel that powers both the 75 P and 90 P. Displacement is 1250 cm³ (about 76 cubic inches) with a rated 75.5 horsepower at 2150 rpm on the 90 P-CV P5. The manual also gives the optional brake-equipped motor and the soundproofed superstructure. If you’re pulling the cylinder head, you need to see the factory tightening sequence – it’s in the manual, not something you guess from a forum post.

Transmission: 2-Speed Gearbox with 4-Stage Transfer

The OCR shows “Boite 2 vitesses et 4 étages” – that’s a two-speed gearbox mated to a four-stage transfer case. That gives you eight forward speeds and eight reverse, with road and worksite ranges. The manual includes the shift linkage adjustment specs and the oil capacity (12.5 liters for the gearbox). For the transfer case, you’ll find the recommended oil type and fill procedure. Skip that step and you’ll be pulling the whole driveline later.

VARIOYN Hydraulic Circuit: Load-Sensing Logic

The 75 P and 90 P use the VARIOYN system – a variable-displacement pump with load sensing that directs flow where it’s needed. The manual explains the circuit in French (the original language), but the diagrams are universal. Page 73 shows the complete hydraulic schematic with line sizes and relief valve settings. If you’re diagnosing a sluggish swing or a weak crowd, start there. The manual gives you the test points and pressure values in bars – convert to psi if you must, but work from the factory numbers.

Does This Manual Cover Both the 75 P and the 90 P?

Yes. The title says 75 P and 90 P, and the content treats them together. The differences are noted: the 90 P-B has a 48% gradeability vs 45% on the 75 P, and the speeds differ slightly. Underneath, both share the same Deutz engine, VARIOYN hydraulics, and two-speed/four-stage transmission. You’ll find separate tables for capacities and dimensions where they deviate. One manual, two models – no confusion.

3 Reasons to Choose the OEM Documentation

Factory torque specs. The manual lists every critical fastener – cylinder head bolts, wheel lug nuts, swing drive bolts – in metric Nm. No rounding, no “tighten until snug.”
Accurate wiring diagrams. The electrical section (about 30 pages) covers the starter circuit, alternator, and instrument panel. The ground points are marked, and the wire gauge is spec’d.
Hydraulic pressure settings. The VARIOYN pump control pressures are given for both models. If you set the standby pressure wrong, the machine will either stall or waste fuel. The manual saves you that guesswork.

Source Validity: Original Poclain, Not a Reprint

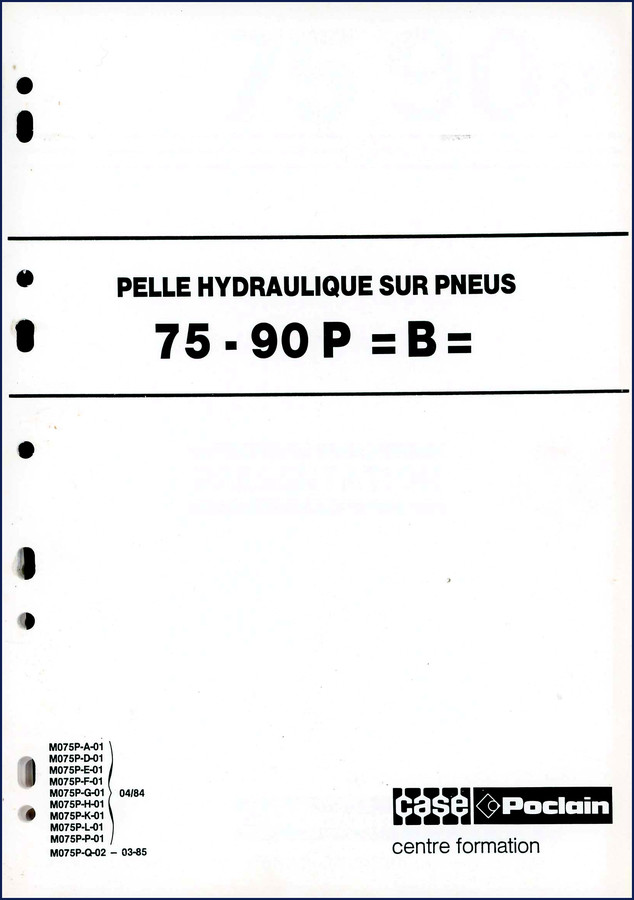

This is the actual factory technical manual printed in 1984 by CASE Poclain’s training department – “centre formation” on the cover. The file name includes “_fr” because it’s in French, but engineering drawings and torque tables transcend language. I’ve seen too many aftermarket manuals that copy the text but leave out the revision dates. This one has the part numbers and serial number breaks (M075P-A-01 etc.). If you need to cross-reference, you can trust that the data matches what the line used when these machines were built. Compare it to something like Manual Transmission – the concept is the same: factory documentation beats aftermarket every time.

Related Manuals for CASE Poclain Equipment

If you’re working on a family of these excavators, you might want the full set. Check out the Poclain Hydraulic Excavators Index to see what else is available. For the older 350CK, grab the Poclain 350CK Presentation General Description Manual. And for general operating tips, the Case Poclain Hydraulic Excavator Instructions will get you through daily checks. If transmissions are your thing, Manual Transmission has basic theory, but for the Poclain, stick with the OEM source.

What models are covered in this manual?

The 75 P and 90 P, with all sub-variants listed (75 P-A, 90 P-B, etc.).

Does it include specific torque values for the engine?

Yes. The manual provides cylinder head bolt torque in Nm, main bearing cap torque, and connecting rod torque. It also lists the tightening sequence for the Deutz F6L 912. Do not use aftermarket specs – the factory sequence is critical to prevent head warping. On a 90 P, the head gasket will fail if you skip the first pass. Follow the exact order given in the manual, and use a calibrated torque wrench (imperial or metric). The manual also includes the oil filter torque and drain plug torque. Every fastener that matters is in there.

Is the manual in English?

Originally in French. The diagrams, torque tables, and part numbers are universal. If you can read a hydraulic schematic, you’ll follow it without translation.

How many pages does it have?

189 pages bound in a single PDF. That covers engine, hydraulics, transmission, electrical, and specifications.

Don’t trust a reprint when you can have the original. Access the Factory Manual from AutoRepairManuals and keep a copy on your tablet next to the oil filter wrench. Your machine will thank you, and your billable hours won’t disappear chasing wrong specs.
