Case CB 32, CB 45, CB 65, CB 85, CB 120 2004 Operators Manual – Factory Specs

You are holding a Case hydraulic hammer, and you need the right grease point, the correct charge pressure, and the exact sequence for safety decals. Without the factory documentation, you are guessing. And guessing on a 3,000 psi hydraulic system gets you a hospital visit. This 2004 Case CB 32, CB 45, CB 65, CB 85, CB 120 2004 Operators Manual is the only document that tells you how to run these hammers without damaging the carrier or the tool. 68 pages, printed by CASE, not a reprint from some third-party that left out the torque values. I have seen aftermarket manuals that skip the whole section on accumulator charging. That kills a hammer in one cycle. Don’t be that guy.

7 Safety Decals and Their Locations

Section 3 (Seguridad/Adhesivos) of this manual dedicates multiple pages to the exact placement and meaning of every warning sticker on your CB 32, CB 45, CB 65, CB 85, or CB 120. You think a faded decal is no big deal? Try having a helper stand in the danger zone because he didn’t see the “Keep Away” sign. The manual shows the ISO-standard hazard symbols, explains the red/ orange/ yellow color codes, and tells you what to do if a decal is missing. This is the kind of detail that keeps your crew alive. Page 2 spells out the difference between Peligro, Atención, and Prudencia. Read it. Then check your machine.

Lubrication Schedule: Why 50 Hours Matters

Section 6 (Engrase) and Section 5 (Periodicidad de mantenimiento) give you the maintenance intervals for every grease fitting, every bushing, every pivot point. On a CB 65 hammer, missing a grease cycle at 50 hours can turn a $200 bushing into a $2,000 rebuild. The manual tells you which type of grease to use, how many strokes of the gun, and where to apply it. Unlike generic guides that say “grease regularly,” this manual says exactly which points need attention every 10 hours, 50 hours, and 250 hours. Follow it. Your hammer’s lifespan depends on it.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, the torque specifications for retaining pins, accumulator caps, and bracket bolts are only found in this factory manual. I have caught aftermarket manuals listing generic torque values that stripped threads on a CB 85 within a week. Second, the operating instructions in Section 4 (Instrucciones de utilización) cover the correct method for engaging the hammer, setting flow rates, and avoiding blank firing. Third, the storage procedures in Section 8 (Almacenamiento) tell you how to depressurize the nitrogen charge before laying the hammer down. That information is not in a Chilton or a Haynes. You want the real thing, you buy the OEM print.

Does This Manual Cover the Fuel System?

No. This is an operators manual, not a service or repair manual. It covers daily operation, safety, maintenance, lubrication, storage, and basic adjustments (Section 7 – Mantenimiento/Regulación). If you need to tear down the hammer or replace internal seals, you want the service manual. But for anyone running a CB 32, CB 45, CB 65, CB 85, or CB 120 on a daily basis, this 68-page booklet is the checklist you keep in the cab. The quick reference guide at page 5 lists all sections so you can find “Engrase” without flipping through Spanish text if you don’t read it. Keep it in a zip-lock bag next to the fire extinguisher.

What Torque Values Are Listed?

Section 9 (Especificaciones) contains the technical data for each hammer model: operating pressure, oil flow range, impact rate, weight, and – most importantly – the nitrogen pre-charge pressure for the accumulator. That pre-charge value is not a “close enough” number. Set it wrong and the hammer either runs slow or destroys itself. The manual also gives the torque for the tie rod nuts and the lower bushing retaining bolt. Those are the numbers you stamp on your toolbox. I’ve seen a CB 120 lose a lower bushing because someone used a torque wrench set to 150 ft-lb instead of the spec 220 ft-lb. That’s a $1,500 repair. The manual avoids that.

Source Authenticity: Factory Print, Not a Copy

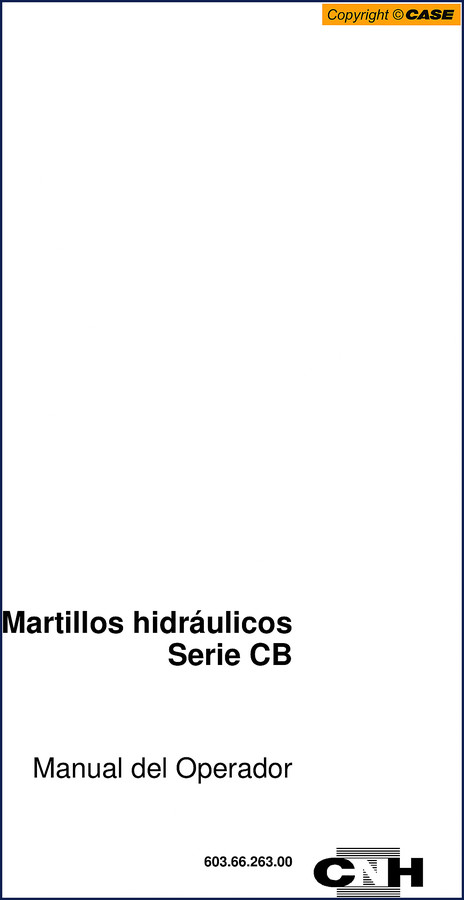

The document you are accessing is the original 2004 CASE publication (part number 603.66.263.00). It comes from the OEM archive, not a scanned-and-OCR’d copy that blurs the decal symbols. Every page is legible, every torque table is readable, and the safety warnings are in full color (or clearly described). AutoRepairManuals does not resell reprints. You get the real PDF. Check the first page: Copyright © CASE, CNH, 2004 Edition. That is the mark of a genuine factory document. If you want to verify, compare it to the manual that came with your machine.
