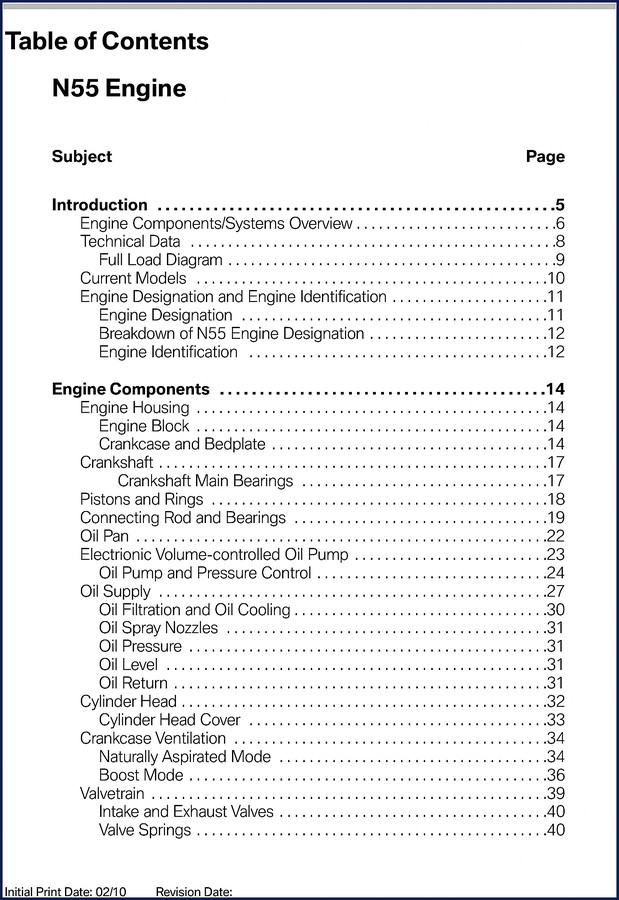

BMW N55 Service Manual

You have a BMW N55 on the lift and you need more than a YouTube guess. I’ve seen guys snap head bolts because they trusted a forum post over factory data. This BMW N55 Service Manual runs 100 pages of OEM documentation – not a third-party summary, not a reprint from a generic CD. It’s the same binder material BMW dealers use. If you are here to avoid another stripped thread or misdiagnosed VANOS fault, this is the file you want open on your tablet.

Engine Housing and Crankshaft Main Bearings

Section 14 covers the engine block, crankcase, and bedplate. You get the exact casting numbers and bearing shell selection specs. Need the main bearing clearance? It’s right there with the measurement procedure. The Crankshaft chapter (page 17) lists main bearing torque sequence and tightening angles. Do not guess – use the factory angles. I’ve seen aftermarket manuals round them to the nearest 10 degrees. That costs you a spun bearing.

Valvetronic III: What the Manual Covers

This section explains phasing, masking, and combustion chamber geometry. The Valvetronic servomotor function and valve lift adjustment overview are broken down with system diagrams. If you are swapping a cylinder head or diagnosing a fault code for valvetrain range, the OEM flow chart here saves hours. The manual shows the relationship between the eccentric shaft and the intermediate lever. No assumptions.

Does This Manual Cover the DME/ECM?

Yes. The Engine Electrical System section includes circuit diagrams for the MEVD17.2 control unit. You get the full engine cooling circuit diagram plus the digital motor electronics block. The functions – fuel supply, fuel quantity control, boost pressure control, engine cooling, system protection – are laid out with sensor locations and wiring pin assignments. For a shop that sees N55s regularly, this kills electrical diagnostic guesswork.

Service Information for Cylinder Head and Fuel Injectors

Pages 32 and 33 detail the cylinder head removal and cover replacement. The fuel injector service procedure includes high-pressure fuel pump and injector valve function. You get the torque specs for the injector clamp bolts and the cylinder head bolts. Use the factory tightening sequence – it is listed bolt-by-bolt. The manual also covers ignition coil removal, which sounds simple until you break the coil sleeve. Factory method avoids that.

3 Reasons to Trust This Source

One: This is a direct BMW PDF, not a third-party scan. Two: It includes the Full Load Diagram (page 9) for fuel and boost mapping – essential for tuning or diagnostics. Three: The engine designation breakdown tells you exactly which N55 variant you have (N55B30M0, etc.). That matters because VANOS and valvetrain parts differ. For related models, check the BMW 7 Series Service Manual 1988-1994 or the BMW 3-Series & 5-Series Service and Repair Manual Haynes for chassis-specific info. The BMW 318/325 Body and Interior Service Manual Content covers bodywork if you are in that side of the shop.

Audience Fit: Home Mechanic or Full-Time Tech

If you are a DIY enthusiast, this manual saves you from calling a dealer when the oil pressure sensor fails. You get the oil pressure spec and the sensor location. For a pro, the wiring diagrams and system protection logic cut diagnostic time. I run a six-bay shop and this PDF lives on my shop tablet. No fluff, no reprints – just factory data. For broader industry context, the Automotive Industry Overview covers trends, but for hands-on work this manual is the tool. Need transmission work? The Manual Transmission section is not in this book, but the engine side is complete.

FAQ

Does the manual include torque values for the crankshaft main bearings?

Yes. Page 17 lists the tightening torque and angle. Do not use aftermarket equivalents.

How does this manual help me diagnose a VANOS solenoid fault without losing my mind?

The VANOS system section explains solenoid valve function and cam sensor wheel alignment. It includes electrical testing procedures with DME pin numbers. You can verify solenoid resistance and supply voltage at the connector before condemning the unit. The manual also shows the oil pressure path to the VANOS units – low oil pressure often mimics a solenoid fault. That diagnostic flow alone saves you from replacing parts that are fine.

Stop chasing ghosts with generic guides. Access the Factory Manual and keep it on your workbench. Every torque spec, every circuit, every disassembly step is verified by BMW engineering. That is the only way to keep the N55 running like it left the factory.
