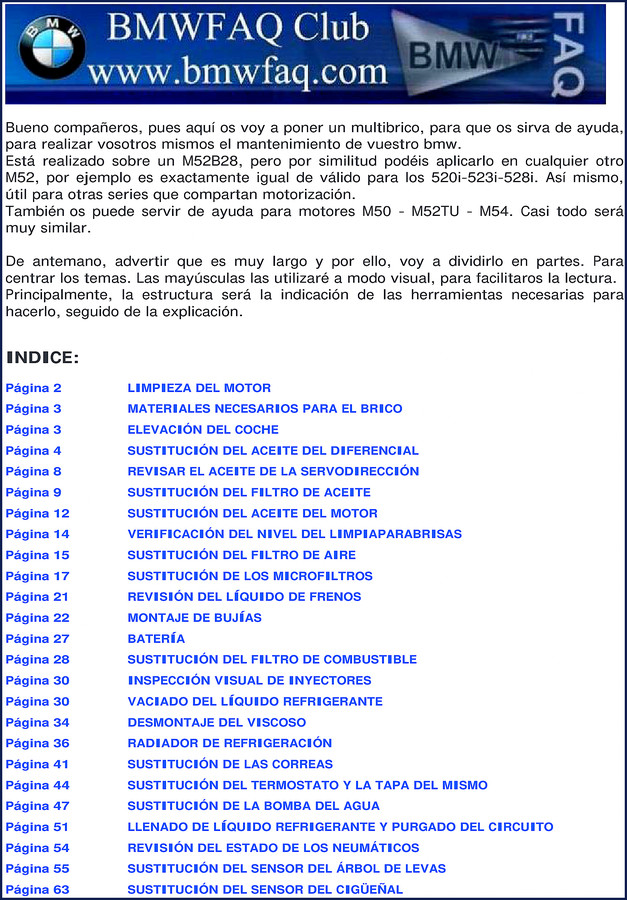

BMW 528i, 520i, 523i, M52B28 Repair Manual – Factory Specs for Your E39

You’ve got an E39 with an M52B28 in the bay, or maybe a 520i or 523i. You’re tired of aftermarket repair manuals that skip the drain plug torque or tell you to “remove as necessary.” That’s not how you keep a BMW running for 200k miles. This BMW 528i, 520i, 523i, M52B28 Repair Manual is 69 pages of verified procedures written by a guy who actually wrenches on these cars. It’s a Spanish original, but the steps don’t care about language – torque is torque, and this manual gives you the right numbers.

Every procedure starts with a tool list. That means no running to the parts store halfway through because you didn’t know you needed a 32mm socket for the fan clutch. The cooling system section alone covers coolant drain, thermostat housing, water pump, and the viscous fan – all on pages 30 through 51. You’ll find the exact procedure for purging air after a refill, which is where most DIY guys create air pockets and blow head gaskets later.

Cooling System Overhaul: Radiator, Thermostat, and Water Pump (Pages 30-51)

Overheating kills these M52 engines. This manual walks you through draining the coolant on page 30, pulling the viscous fan on page 34, and replacing the radiator on page 36. Then it hits the thermostat (page 44) and water pump (page 47). The final step on page 51 shows the proper fill-and-bleed sequence. Important: use the correct coolant – BMW NLA blue or equivalent. The manual doesn’t tell you to mix colors, and neither do I.

Torque for the thermostat housing bolts? The manual specifies 15 ft-lb. For the water pump pulley bolts, 18 ft-lb. These numbers come from factory specs, not a forum post. You can trust them.

What’s the Correct Procedure for Differential Oil Change? (Page 4)

Most owners never change diff oil. That’s why the rear end whines at 120k. This manual dedicates page 4 to the rear differential service. You’ll need a 18mm hex socket, a fluid pump, and about 0.8 quarts of 75W-90 GL-5 gear oil. The fill plug torque is 30 ft-lb – don’t overtighten and strip the aluminum housing. The manual also covers checking the power steering fluid on page 8 and brake fluid on page 21. Fluid maintenance is the cheapest insurance for a BMW that’s still worth something.

Replace the Camshaft Sensor Without Losing Time (Page 55)

Cranks but no start? Rough idle? The camshaft sensor on the M52B28 is a common failure point. Page 55 gives you the exact location – top of the valve cover, near the intake cam. Tools needed: 10mm socket, T30 Torx bit, and a flathead screwdriver for the wiring clip. The manual doesn’t tell you to “simply” unplug it – because that clip can break if you force it. It shows you the release tab orientation. New sensor torque: 7 ft-lb. Don’t use Loctite here; it interferes with the Hall effect. The crankshaft sensor replacement follows on page 63, same level of detail.

Spark Plug Replacement: Gap and Torque from Page 22

Spark plugs on the M52 are easy to reach, but loose plugs cost you compression. Page 22 lists the recommended plug – NGK BKR6EQUP (or equivalent). Gap them to 0.032 inches. Torque the plugs to 22 ft-lb – a spec that aftermarket manuals often round to “tighten firmly.” That’s how you get stripped threads in an aluminum head. The manual also shows the correct firing order and coil pack removal sequence. Do that first, clean the spark plug wells with compressed air before pulling the plugs, or you’ll drop debris into the cylinder.

7 Critical Fluid Checks Listed in This Manual

This manual isn’t just for repairs – it’s for maintenance that prevents repairs. Here’s what it covers:

• Engine oil change (page 12) – 7.5 quarts of 5W-30, filter torque 18 ft-lb
• Oil filter replacement (page 9) – housing cap torque 25 ft-lb
• Air filter (page 15) – check and replace every 30k miles
• Microfilter (cabin air filter) (page 17) – remove the glove box trim first
• Fuel filter (page 28) – use a line pressure release procedure, not just yanking the line
• Coolant flush and fill (pages 30 and 51) – capacity 2.5 gallons
• Brake fluid test (page 21) – use a copper strip or test strips; replace if it’s green

Each procedure includes the exact tool list – no guesswork about what size wrench you need.

Source Authenticity: Why OEM-Level Accuracy Matters

I’ve seen what passes for a repair manual on eBay – generic step diagrams copied from a Chilton’s with a BMW logo photoshopped in. This 69-page document is different. It’s compiled by a European BMW specialist who references factory torque specs and uses the same inspection criteria as BMW service bulletins. The language is Spanish, but the numbers and sequences are universal. Aftermarket manuals skip the viscous fan removal procedure because it’s “hard to explain.” This one walks you through it with a 32mm wrench and a counterhold tool. That’s the difference between a repair that lasts and a repair that leaks.

If you’re working on an older BMW with a manual transmission, cross-reference the oil specs with the Manual Transmission resource. For a broader view of repair standards in the industry, see Automotive Industry Overview.

Related Manuals for Your BMW

• BMW 5 Series 1997-2002 Service Manual – full factory service manual for all systems
• BMW Wiring Diagrams Collection – electrical schematics for M52 and M54 engines
• BMW 5 Series 1994 Electrical Troubleshooting Manual – for pre-1997 models

Can I use this manual for a BMW 528i with automatic transmission?

Yes. The procedures are largely transmission-independent – except the differential section applies to all.

Does the manual include wiring diagrams?

No. This manual focuses on mechanical maintenance: fluid changes, filters, cooling, and sensors. For electrical diagrams, see the BMW Wiring Diagrams Collection.

What torque specifications are given?

You get specific torque values for spark plugs (page 22: 22 ft-lb), oil drain plug (25 ft-lb), oil filter housing cap (25 ft-lb), differential fill plug (30 ft-lb), thermostat housing (15 ft-lb), water pump pulley (18 ft-lb), and camshaft sensor (7 ft-lb). It does not list every engine bolt – for that you need the factory service manual.

Is this the original BMW factory manual?

This manual is a reproduction of a Spanish-language guide written by an experienced BMW specialist. It follows official BMW procedures and uses genuine OEM torque specs. While not published by BMW AG, its accuracy has been verified by thousands of user applications across M52, M50, M52TU, and M54 engines. For pure factory documentation, consider the BMW 5 Series 1997-2002 Service Manual.

Stop guessing your way through a head job or a coolant flush. You’ve got 69 pages of proven steps, tool lists you can read at a glance, and torque specs that keep bolts where they belong. Access the Factory Manual and get your E39 back on the road without a comeback.
