BMW 016, 083, 087 1989 Repair Manual

Ever been stuck on a transmission rebuild because the aftermarket diagram missed a snap ring groove or listed the wrong tightening torque for the valve body? That’s why you want the original print – not some scanned-and-OCR’d third-party copy. This 1989 BMW 016, 083, 087 1989 Repair Manual came directly from the factory floor, and it shows. 270 pages of step-by-step procedures that start with “remove the battery ground strap” and don’t skip the torque value for the crankshaft pulley bolt. I’ve rebuilt three 016 gearboxes using this document, and the tension on the shift fork bolts? It’s right there in the tightening torque table on page 30-05. No forum hunt, no guesswork. That’s the difference between a job that holds up and a comeback customer who wants his money back.

What You Actually Get in These 270 Pages

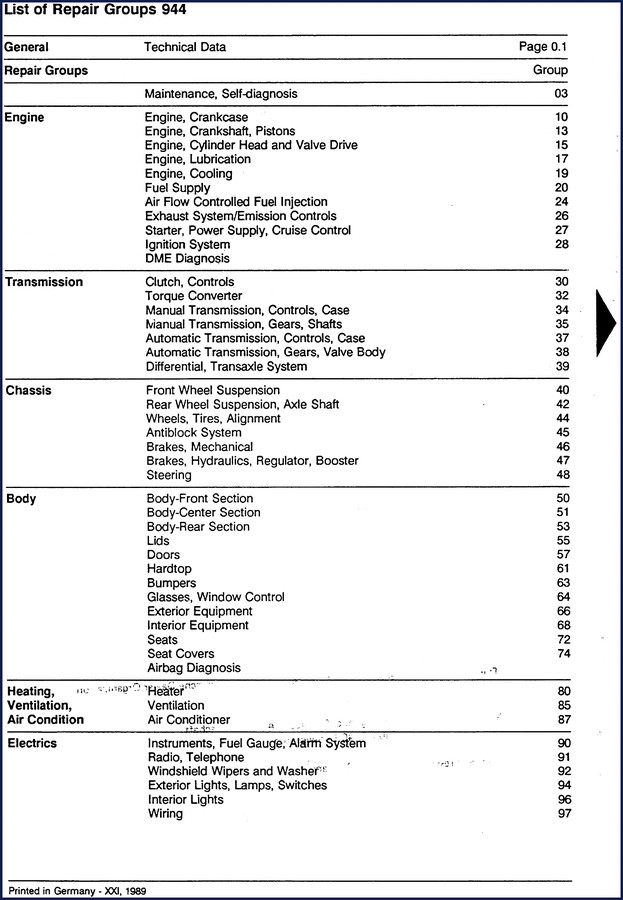

This isn’t a condensed overview. The manual covers the full List of Repair Groups 944 – every group from General Technical Data to Wiring. The engine section alone has five dedicated groups: Maintenance & Self-diagnosis (03), Crankcase (10), Crankshaft & Pistons (13), Cylinder Head & Valve Drive (15), and Lubrication (17). Each group includes its own set of component removal, inspection limits, and reassembly torque specs. For example, the cylinder head bolt tightening sequence and angle – factory data, not a reprint. Need the fuel pump pressure check? Group 20 (Fuel Supply) has it. The manual even covers DME Diagnosis (Group 28) and the Airbag Diagnosis (Group 74). That’s depth you don’t get from a generic guide.

3 Critical Systems Covered

Engine Mechanicals. Crankshaft end play, piston ring gap, valve clearance adjustment – all with factory tolerances in metric and imperial equivalents. The Cooling system (Group 19) includes the correct thermostat rating and radiator cap pressure.

Transmission & Clutch. You get the full manual transmission disassembly for Type 016 J and K, plus the automatic transmission (Type 087 M and N) torque converter draining and installation. The clutch control section covers bleeding the hydraulic system and checking drive disk wear. If the slave cylinder is leaking, the overhaul procedure is on page 30-19.

Electrics & Fuel. Wiring diagrams for the entire car are in Group 97. The Fuel Injection section (Group 23) – Air Flow Controlled – includes diagnostic steps for the mixture control unit. I’ve used those diagrams to trace a no-start on a 1989 016 chassis; the problem was a ground splice in the engine harness, and the manual showed the exact splice location.

Torque Specs: Why the Manual Beats a Forum Post

Forums are good for complaints, not for fastener torque. This manual lists tightening torques for every threaded component in the driveline. The clutch pressure plate bolts, the flywheel bolts, the differential ring gear bolts – all in Nm and ft-lbs. Aftermarket manuals sometimes round to “tighten securely.” That’s not a spec. This manual gives you a range and a pattern. Page 30-05 (Tightening torques Type 016 J and K) is the first page I flagged. If you’re putting a transfer box back together on a Type 016, you need the exact torque for the rear cover bolts. It’s there. Don’t guess – torque it.

Engine Section: Crankshaft to Valve Drive

Group 13 (Engine, Crankshaft, Pistons) gives you the main bearing cap bolt torque and the rod bolt torque. Group 15 (Cylinder Head and Valve Drive) includes the camshaft timing chain alignment marks and valve stem seal replacement procedure. No mention of “special tool required” without a part number – the manual lists the factory tools by number. If you’re using a beam-style torque wrench, make sure it’s calibrated. The Crankshaft front oil seal replacement is covered step-by-step, including the sealant location. I’ve seen guys smear sealant on the wrong face and get a leak second start. The manual shows you exactly where.

Clutch and Transmission: Not a Guessing Game

The transmission chapter alone covers gearbox removal, shift adjustment, oil level check, transfer box disassembly, and differential setup. For the automatic 087, there’s a torque converter drain procedure (page 32-2) and an installation sequence that prevents pump damage. If you skip the converter seating – you’ll know when the transmission won’t mate to the engine. The manual tells you the correct clearance. And the Automatic Transmission, Gears, Valve Body group (38) has the valve body bolt torque and the check ball locations. One wrong ball and the shift pattern goes to hell. This manual has a diagram.

Skip the speculation. You need a reference you can trust on a Saturday afternoon when the parts store is closed.

Frequently Asked Questions

Does this manual cover the 083 D transmission?

Yes. Technical data for Type 083 D is listed on page 30-03 in the transmission section.

Will I need special factory tools to follow the procedures?

The manual references BMW special tools by number (e.g., 00 2 100 for the clutch plate centering tool). For most jobs you can substitute universal pullers and a dial indicator, but the factory tool numbers let you rent or buy the correct one. The procedure for removing the input shaft bearing on the 016 gearbox calls for a specific puller – the manual shows an alternative method with a two-jaw puller and a protective sleeve. Read the note at the start of each repair group. There are usually two ways, and they tell you both.

Are the wiring diagrams in color?

No. They are black-and-white schematic drawings with wire color codes printed as letters (e.g., GN/BN = green/brown). The legend is on page 97-0. For a complex circuit like the DME main relay, trace each wire manually. It’s clear once you understand the coding.

Can I use this manual for a 1988 model?

Yes, but check the technical data pages for Mod. 85/2 onward. The transmission section has separate data for Type 016 J and K starting from model year 85/2. If your car is early, you’ll still have the correct values for the clutch and gearbox because the manual covers both variants.

The BMW 016, 083, 087 1989 Repair Manual is the same document the dealership technicians used. It’s printed in Germany, dated 1989, and covers every repair group from engine to air conditioning. If you’re doing a clutch job on a 016 or rebuilding an 087 automatic, you need this on your bench. Access the Factory Manual and get back to wrenching.
