Allis-chalmers HD16D, HD16DC 1970 Parts Catalog

Listen, I’ve seen guys order a left fender for an Allis-chalmers HD16D and get the pre-09572 part when their machine is post-09572. That mistake costs a week in freight and a pissed-off customer. This is the Parts Catalog that kills that problem. It’s the factory supplement from 1970, covering both the HD16D and HD16DC crawler tractors. Here’s what you’re getting: 475 pages of OEM part numbers, serial number breaks, and engineering revisions that the aftermarket reprints ignore.

What the Supplement Changes

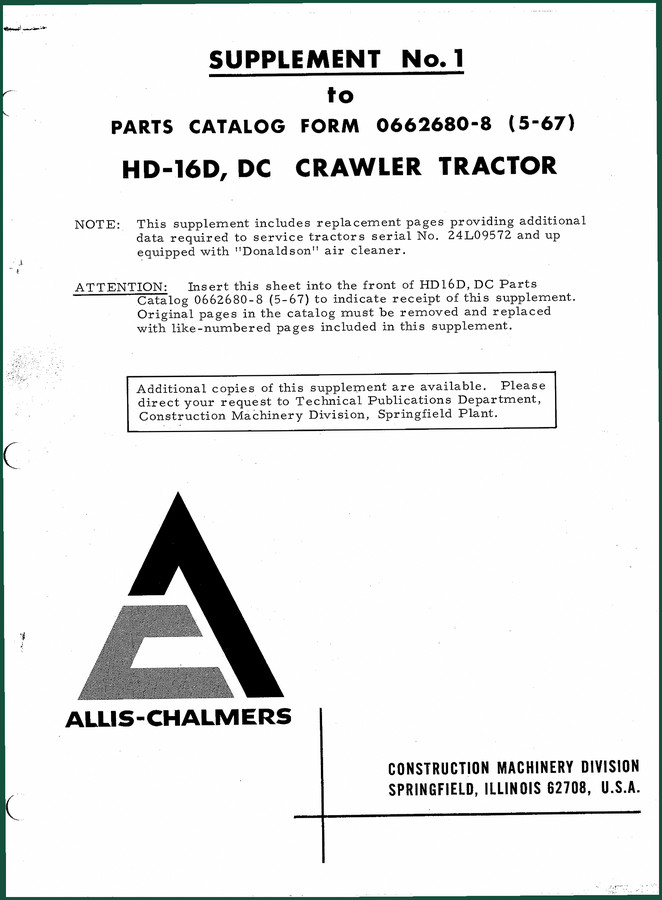

Most catalogs stop at the base manual. This one is Supplement No. 1 to Form 0662680-8. It was issued to handle tractors from serial No. 24L09572 onward – specifically those with the Donaldson air cleaner. The summary on page 2 lists every changed item, part number, and quantity. For example, the intermediate rod changed from part 650394 to 668147 at unit #09572. The intermediate rod spring got a new number (630745). If you’re working on a machine in that serial range and don’t have this supplement, you’re ordering wrong parts.

Serial Number Breaks and Usage Notes

Allis-Chalmers documented exactly which machines take which parts. Page 72 lists usage for tractors serial No. 5901 through 9550 and also No. 24L09551 through 24L09571. Page 79 covers serial No. 7437 and up plus the same 24L09551–24L09571 range. The catalog includes added pages (74A, 74B, 74C, 74D) and revised pages (261, 262, 279, 280, 281) that you must insert into the base catalog. Without these replacements, your parts list is outdated. I keep a binder with the base catalog and this supplement tabbed together.

Model Identification – Know Your Machine

Two models are covered. The HD16D: 34,500 lb, 6-speed manual, 174 hp naturally aspirated diesel. The HD16DC: 34,700 lb, 3-speed with torque converter drive, 194 hp. Same engine family (16000H) but different driveline parts. The catalog gives the model symbol and description so you don’t mix up a torque converter part with a manual transmission part. Torque values? You won’t find them in a parts catalog – that’s in the service manual – but the part numbers for gaskets, seals, and bearings are here.

Why This Beats Aftermarket Reprints

Aftermarket “compilations” cut corners. They photocopy the base catalog but leave out the supplement pages. This PDF is the original factory supplement, scanned from the actual booklet that Allis-Chalmers printed in 1970. Every page number matches the original. When you need the bracket part 651431 or the lockwasher 904208, you get the exact Allis-Chalmers number. No guessing. No “equivalent” that doesn’t fit. If you’ve ever ordered a part for a Allis-Chalmers HD-6EP Crawler Tractor Parts Catalog S/N 14484-22250, you know the difference between OEM and generic.

3 Reasons You Need This Catalog on Your Bench

First, serial number accuracy. Page 264 shows the front section plate changed from 649131 to 671456 at unit #09572. Second, the fender assemblies – part 654479 for left, 669027 for right after the break. Third, the supplement adds usage notes for tractors after serial No. 5901. Without this, you’ll be ordering a left fender for a machine that uses a different mounting plate. The catalog also relates to other Allis-Chalmers models like the Allis-Chalmers HD 21A Tractor Parts List and the Allis-Chalmers HD 11 E/AG Parts Catalog – same factory documentation standard.

FAQ

Does this parts catalog include torque specs for the head bolts or track adjusters?

Not here. This is a parts catalog, not a service manual. It lists part numbers, quantities, and usage. You need the service manual for clearance and torque values.

Will this help me identify parts for a 1969 HD16D before the serial break?

Yes. The supplement covers tractors from serial No. 24L09572 up, but the base catalog (not included) covers earlier machines. Usage notes on page 72 and 79 give ranges that include pre-09572 units.

How do I use the replacement pages listed on page 2?

Remove the old pages from the base catalog and insert the like-numbered pages from this supplement. The summary tells you which pages are revised, added, or unchanged. Insert the supplement sheet at the front of the base catalog. That’s the factory procedure.

Is this the same as the manual on the OEM dealer network?

This is the exact same PDF that Allis-Chalmers Construction Machinery Division released. It’s a direct scan of Form 0662680-8 Supplement No. 1, printed 7-70. If you want the context of the Automotive Industry Overview, understand that factory documentation is the only way to guarantee fitment. Compare it to Automotive Industry Overview standards – OEM wins every time.

Bottom line: you’re not going to find a cleaner copy of this supplement anywhere else. It’s 475 pages of factory-correct part numbers, serial breaks, and usage notes. If you work on HD16D or HD16DC tractors, this is the reference that keeps parts orders right and machine downtime low. Access the Factory Manual now and put it in your digital library next to the base catalog.
