Allis-Chalmers HD 11 E, HD 11 AG Parts Catalog – Factory OEM Specs

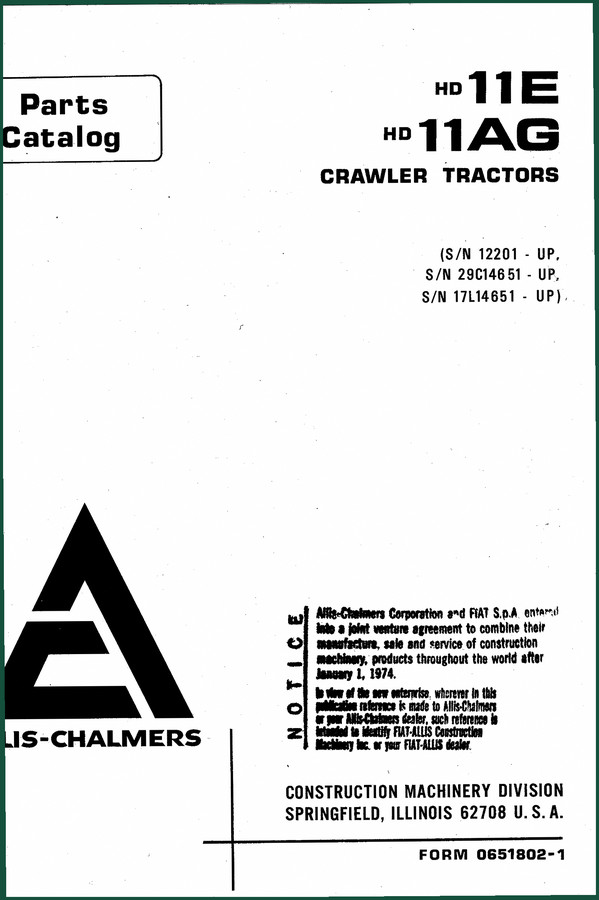

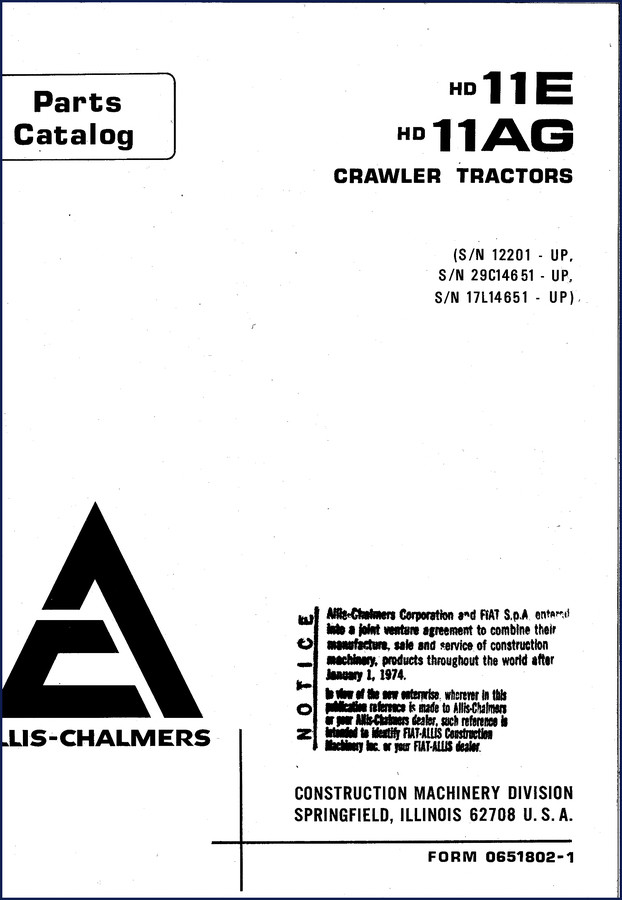

Let me guess—you’ve got an Allis-Chalmers HD 11 E or HD 11 AG on your shop floor or out in the field, and the parts book you inherited looks like it went through a chipper. Aftermarket PDFs with blurry illustrations and part numbers that don’t match anything? I’ve seen that garbage. Waste of time. This is the real deal: the original Parts Catalog from Allis-Chalmers, straight out of Springfield, Illinois. 334 pages of factory-correct exploded views, group numbers, and serial number splits. No third-party reinterpretations. If you’re ordering a steering clutch disc or a final drive seal, you need the exact OEM number—or you’ll be waiting another week for the wrong box.

Parts Catalog Coverage: Crawler Tractors S/N 12201 and Up

This catalog covers both the HD 11 E and HD 11 AG models, with serial number breaks clearly identified: S/N 12201 – UP, S/N 29C14651 – UP, S/N 17114651 – UP. That means you can nail down the exact parts for your machine’s build date. The book is organized by major assemblies—engine, power train, undercarriage, hydraulic system, controls, sheet metal, etc. Each section shows a group number, a parts list with quantities, and a clean illustration. Want to find the idler assembly? Flip to the undercarriage section. Need the hydraulic control valve? Look under the hydraulic group. This is a working document, not a coffee-table book.

Why Factory OEM Documentation Over Aftermarket Copies

I’ve watched guys spend an hour cross-referencing aftermarket “universal” manuals that list a part that was discontinued in 1968. The Allis-Chalmers factory catalog includes all the revisions published through TPSD-123, with supplements dated as late as April 1971. That means you’re getting the updated part numbers, not the original ones that got superseded. On page 26, you’ll see revision marks for March 1968 changes. If you rely on a pirate scan missing those updates, you’ll order a part that doesn’t fit. That’s lost time and lost money.

Safety Warnings You Cannot Ignore — Even for Parts

Page 2 of this catalog slaps you with a National Safety Council warning: never service a machine with hydraulically or cable-controlled equipment raised unless it’s mechanically supported. That advice applies when you’re pulling a cylinder or a control valve. Some guys think “I’ll just leave the bucket in the air while I swap the hose.” That’s how you get crushed. The catalog includes the safety section because Allis-Chalmers expected mechanics to read it. So should you.

3 Reasons to Choose This Catalog Over a Generic Database

First: every part number in here was validated by the people who built the tractor. Second: the serial number breaks let you order correctly for your specific machine—the HD 11 E and HD 11 AG share many components, but not all. Third: the paper originals were reprinted multiple times; this third printing (8-72) includes all write-in changes from parts bulletins. A generic website pulling from a single source won’t have those updates.

How to Use This Parts Catalog Effectively

Start by locating your machine’s serial number—stamped on the right side of the transmission case. Then find the appropriate group section. Each part is listed with its description, quantity used, and OEM part number. Cross-reference with the illustration to make sure you’re looking at the right component. Don’t guess based on visual similarity; I’ve seen two different final drive gears that look identical but have different tooth counts. The part number tells the story.

Related Manuals You Might Need

• Allis-Chalmers HD-6EP Parts Catalog – Factory OEM 374 Pages
• Allis-chalmers HD21A 1965 Parts Catalog – Factory OEM
• Allis-chalmers HD16D, HD16DC 1970 Parts Catalog – OEM Factory Specs

For a broader look at how these machines fit into the Automotive Industry Overview, that external link gives context but won’t help you find the right piston ring.

Frequently Asked Questions

Does this catalog include the engine parts for the HD 11 AG?

Yes. The engine section covers both the HD 11 E and HD 11 AG, but pay attention to the serial number breaks—some early AG models used different pistons.

Is this a reprint or a scan?

It’s a digital copy of the original factory third printing (8-72), not a re-typeset aftermarket version. The illustrations are clean and readable.

What about the hydraulic pump part numbers?

You’ll find them in the hydraulic system group. The catalog lists the pump assembly with its drive coupling and mounting bracket. Use the illustration to verify your configuration before ordering.

Can I use this for the HD 11 series without serial numbers?

You can, but you risk ordering wrong parts. The catalog explicitly breaks serial number ranges, so if your machine falls outside the covered range, some parts may differ. Always check the serial number.

Bottom line: if you’re working on an Allis-Chalmers HD 11 E or HD 11 AG, you need the factory parts breakdown to get the job done right the first time. Stop guessing which aftermarket site has the real numbers. Access the Factory Manual and keep it on your tablet or print the section you need for the current job.
