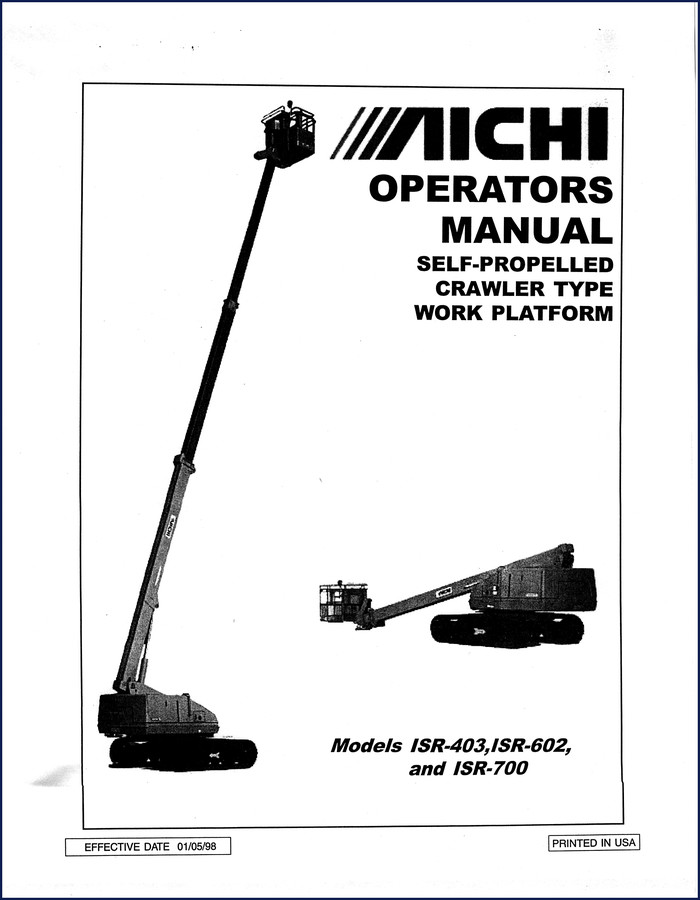

Aichi ISR-403, ISR-602, ISR-700 Operators Manual – Factory Safety & Operation Specs

You’ve got a crawler lift on site and the job calls for precise operation. Without the factory manual, you’re guessing on control functions and minimum approach distances to power lines. That’s how accidents happen. The Aichi ISR-403, ISR-602, ISR-700 Operators Manual puts the OEM’s own safety alerts and operating procedures on your bench. 28 pages, factory printed, with the exact warnings and specs Aichi stamped into these machines.

Safety Alert Symbols and Electrocution Hazards

Page 5 alone is worth the price of admission if you work anywhere near overhead lines. The manual spells out the electrocution hazard distances, what the alert symbols mean, and the operator qualifications required before anyone steps onto the platform. Aftermarket manuals gloss over this – they’ll say “stay away from power lines” without giving the specific clearances Aichi demands. This one doesn’t. You get the real numbers, the real symbols, and the real liability language.

Operator Qualifications – Who Belongs on the Controls?

Section 2 starts by telling you exactly who is allowed to operate these machines. It’s not a suggestion. The manual states operator qualifications on page 10 – training, physical ability, and understanding of the controls. I’ve seen too many yard supervisors hand the keys to a guy who barely speaks English and expect him to figure it out. That’s a lawsuit waiting to happen. If you own a shop or run a fleet, this manual is your training checklist.

Specifications: Crawler Type Aerial Work Platform

Pages 6-7 carry the factory specification table for the ISR-403, ISR-602, and ISR-700. Maximum platform height, travel speed, ground clearance, turning radius – all in imperial units. Need to know the weight of the machine for transport? It’s right there. The specs also cover the crawler drive system, which is a type of Manual Transmission for the track drive. Understanding those drive components saves you from stripping gears when shifting.

Start, Operation, and Shut Down Procedures

The manual walks through lower control panel identification (pages 11-13), platform controls (page 14), and the complete start-and-operation sequence on pages 18-19. It also covers the shut down procedure and loading/tie-down on page 20. Every step is sequenced, not a generic “press the start button” line. You get the OEM’s exact sequence for engaging the boom, raising the platform, and securing the machine for transport. No guesswork about which lever does what.

Page 26 lists the recommended lubricants for the entire machine – hydraulic oil grade, gear oil viscosity, grease type. Check page 26 before you fill anything. The wrong oil will kill a hydraulic pump in under an hour. I’ve seen it.

Maintenance Schedule and Hydraulic System Care

Section 3 covers the operator’s responsibility for daily, weekly, and annual inspections. The owner’s annual inspection requirements are on page 21. The hydraulic system maintenance and repair section on page 22 gives you the procedures for checking filters, hoses, and pressure. There’s even a wire rope inspection guideline. This isn’t a “check fluid levels” pamphlet – it’s a full maintenance schedule that matches the factory service intervals.

Aichi ISR-403, ISR-602, ISR-700 Operators Manual: Why Factory Specs Matter

Aftermarket documentation for these crawler lifts is a gamble. I’ve seen reprints missing half the safety labels, or substituting metric values for imperial ones. This manual is the original OEM print – the same one that came with the machine in 1998. It’s not a copy, not a compilation, not a third-party rewrite. 28 pages of Aichi’s own data, scanned from the factory source. If you work on any of these three models, this is the only manual you should trust for safety, operation, and routine maintenance.
